A RECORD OF EUROPEAN ARMOUR AND ARMS
THROUGH SEVEN CENTURIES
by Sir Guy Francis Laking
CHAPTER I
GENERAL HISTORY OF ARMOUR AND ARMS,
PRIOR TO THE NORMAN CONQUEST, A.D. 1000-1070
PART 1: ARMOUR (BYRNIE, HELMET AND SHIELD) AND ARMS (BOW AND ARROWS, SEAX, AXE, SLING AND SPEAR)
f we were to follow the usual custom employed by those
who have written on the evolution of arms and defensive armour
before us we should take the very earliest records as the
foundation of our story, and the weapons of prehistoric man, his
stone axe, his spear-head and arrows would occupy our attention
in the initial chapter. We should follow by relating all the
information obtainable respecting the weapons used throughout the
many centuries that passed between the bronze age and the period
preceding the Christian era, when the armourer's craft reached a
very high state of perfection; and we should not leave
unmentioned the beauties of the Etruscan helmet or of the Greek's
crested head-piece, nor omit descriptions of the many Greek,
Roman, and Gallic armaments that the hand of time has spared to
be discovered in such plenty. We shall, however, leave these
subjects behind us, and begin to unravel the skein of our story
at a point late in the history of the world.
It would be difficult, almost impossible, to select any one given year and describe definitely the arms and armour in use at that juncture, and with these uncertain data to enter upon our story of evolution. We must take a date - we have chosen the year A.D. 1000 - and there look about us, making survey of what evolution and necessity have then already taught the armourer. Thenceforward we may attempt to carry the unbroken history of the craft.
We begin slowly, halting in the tale. Records of this age are few; already the writers who deal with arms and armour have made most of them over familiar to antiquaries. So it is, that with the best will to bring fresh evidence to the work, we must yet, now and again, show a picture that has become, even in the school history book, as well known as any postage- stamp.
Thus we produce once more that famous illustration from the Anglo-Saxon Manuscript of Aelfric's Paraphrase: without it we could not safely begin our history of the Englishman's war-gear.
As far as may be, we have taken our illustrations from English sources, to which the reader may go himself for more assurance. Only where English examples fail have we sought help abroad.
 |
 |
|
|
|
In a few words one may make the picture of the Anglo-Saxon warrior of the fyrd, the man who came light-armed from the greenwood and the plough-gang to the mustering. He was unarmoured, save for his byrnie or battle-sark, which doubtless was composed of strips of leather sewn tile-wise to a foundation of coarse linen, as leather of thickness for defensive purposes, unless so arranged, would be too stiff a casing for the body. A cap of the Phrygian fashion, plain leather, or reinforced with copper, occasionally with iron bands, kept his head. His legs, from the knee downward, were protected by thongs of leather, wound puttee-wise and meeting a hide shoe cut after the manner of the Highland brogue of the XVIIth century. A round buckler, either fashioned flat like the Scottish targe with strengthening bands and boss of iron, as seen (Fig. 1), or very deeply hollowed, as we see represented (Fig. 2) (both from Cott. MS. Cleop. C. 8), was his last defensive piece. Of such shields, or as the Anglo-Saxons called them, bord or board, our English museums can only show the iron bosses and the fragments of iron rims recovered from graves; but one, apparently of oak, a fairly complete specimen found in Blair Drummond Moss, is now preserved in the National Museum of Antiquities at Edinburgh. Of this we give an illustration (Fig. 3). We are, however, fairly familiar with the variations of their form from the MSS. that exist.
In their manufacture the foundation was usually of linden or lime-tree wood; in the poem of Beowulf, Wiglaf seizes his shield of "the yellow linden." They were for the most part circular; the boss forming the centre. In the illustrations they are generally shown concave, so as to cover the breast and shoulder well. The convex surface turned towards the enemy, to turn the blow of a sword or the thrust of a spear.
FIG. 3. REMAINS OF A WOODEN SHIELD Found in Blair Drummond Moss
The wooden foundation was so made as to leave an aperture for the hand in the centre, and over this came the boss guarding the hand. Indeed, their method of grip was exactly the same as the circular bucklers of the early years of the XVIth century. Stretched over the wood and under the boss and rim and bands was the hide of bear, wolf or deer, fur outwards; by the law of Æthelstan, and doubtless by the more ancient laws of tribal lore, it was forbidden to use the skin of the mild sheep for covering a war-shield.
Even in the days of peace the Anglo-Saxon carried a spear as his descendants carry a walking stick; in war his common arms were spear and sword. The spear in contemporary drawings is crudely represented by a thin straight line with a leaf-shaped or barbed head; we know that in reality the hafts were of medium thickness, the length varying according to the requirements of the wielder.

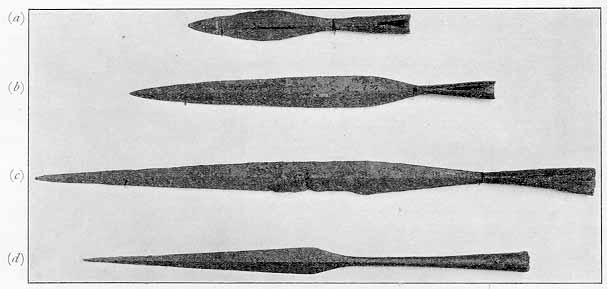

Very many spear-heads of Saxon times have been handed down to us; in most cases they are simply constructed of iron, fashioned to the outline of a short sword blade, for the greater part of the length of which the sharpened edges are almost parallel, although gradually tapering at the extreme end. In nearly every example the haft socket is forged in the manner of all later lances and spears, though not completely encircling the shaft, in fact split as in the illustration (Fig. 4, a, b, c). (Fig. 4, d), is a javelin head, light but very strong; in this case the haft socket is complete.
The lance heads illustrated are all London finds and are now in the London Museum. In greater variety the Saxon lance and spear-head are to be seen in the British Museum. The spear was the freeman's weapon, and as such lawful, but "if a slave be found with a spear it shall be broken on his back."
 |
|

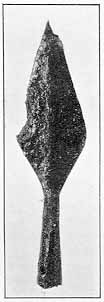

(a) Small spear-head, VIIIth to Xth century, split haft socket, found in the Thames opposite the Tower of London (b) Spear-head, Xth to XIth century, split haft socket, found in the Thames at Vauxhall (c) Long spear-head, decorated, Xth to XIth century, split haft socket, found in the Thames at Wandsworth (d) Javelin bead, Xth to XIth century, complete haft socket, found in the Thames opposite the Tate Gallery London Museum |
In his barrow grave the freeman lies with his spear beside him. We find the spear-head near his foot, the ferrule by his head; he was buried with the "reversed arms" which still are the symbol of warlike grief. The bow was no national weapon of the Anglo-Saxon; the bowmen were on the other side at Hastings; it was not until he had learned to bend the mighty bows of Gwent that the English archer came to his pride of place. Arrow-heads of this period are rarely discovered. An illustration of an Anglo-Saxon bow and arrow in use is given from the Utrecht Psalter, early XIth century (Harleian MS. 603, Brit. Mus.) (Fig. 5), also an illustration of an arrow-head found in the river Thames at Wallingford (Fig. 6), and an example from the Thames at London (Fig. 7).
 |
 |
 |
|
|
(page 5) |
|

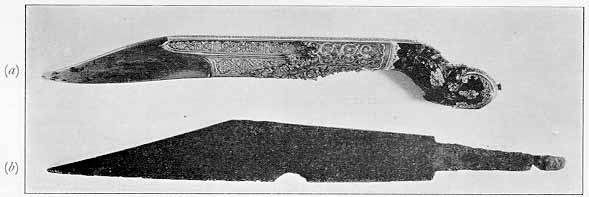

We see in the Bayeux needlework the Anglo-Saxon slings. They also figure in the Cotton MS. Claudius B. 4 (Fig. 8). Knife and dagger seax were likewise auxiliary weapons. These are found in most Saxon districts. London is responsible for many fine specimens. The seax is back-edged and in profile not at all unlike the modern Cingalese dagger (Fig. 9, a and b).
 |
|
Cott. MS. Claudius B. iv. British Museum (page 6) |
 |
|
(b) SAXON SEAX London Museum |
We have already said that the simple militiaman of the fyrd fought light-armed in a leather coat. But the thegn who led him to the field was better fenced with his byrnie of ringed mail. We may not trust over much to the Bayeux needlework for the picture of English warriors. Yet it is to be remarked that it gives the same gear to Norman knight and English house-carle, each alike wears the ringed hauberk almost to the knee, and the helmet with the nasal-guard. His poets tell us that the Englishman's ring-byrnie was "hard hand-locked"; the poem of Beowulf has words of "locked battle-shirts." Precious were these battle-shirts and not to be bartered lightly; no merchant, said the law, shall send byrnies over sea.
But here we are confronted by the difficulty with which all students of the history of armour have to contend; how were the old English mail-shirts wrought? Was it a garment of leather on which rings of metal were sewn at regular intervals, in varying degrees of closeness according to the quality of the shirt, or was the hauberk or ring-byrnie a true shirt of interlinked chain-mail? We incline to the theory that the Anglo-Saxon hauberk was of chain-mail; for without doubt true shirts of mail of the Viking type have been discovered both at Vimose and Thorsberg. Although belonging to a date considerably earlier than the period of which we now write, it therefore seems probable that, since these have been found, others no doubt existed in numbers; it is also reasonable to suppose that if the VIIth and VIIIth centuries produced in Northern Europe an interlinked shirt of mail, its superiority over other warlike garments would have caused such mail shirts to find their way in the course of the next two centuries into the greater part of civilized Europe. Of the intricacies of "banded" and "regulated" mail we will speak briefly later on. But for support of the theory that the ring-byrnie was of simple interlinked chain-mail, with-out the addition of leather thongs or lining, we may turn to the Bayeux needlework and point to the dead Englishman, whose hauberk of mail is being dragged inside out over his head, as live Englishmen pull off their woolen sweaters.
 |
|
From the Bayeux needlework |
In this picture the inside of the byrnie is plainly shown, and it will be noticed that it exhibits what may be taken as small links, and that it is unlined (Fig. 10).
As for the shield of the English thegn or full-armed warrior it had the form of that borne by lesser men, although it was possibly made of richer materials. In the British Museum there are examples of the boss having a silver disk of about the size of half-a-crown, soldered to a base of bronze, affixed to the summit, and ornamented with large silver-headed rivets round the edge.
At Hastings the thegns and house-carles fought round their doomed king, swinging the long-hafted axe, splitting the bodies of Norman knights and shearing horse-heads at the neck. This axe was the traditional weapon of the house-carles; those of Cnut's body-guard bore it. Long after the conquest of England, when lance and sword were the knightly weapons, the memory of those great axes was in men's minds. In ancient rolls of blazonry, made so late as the beginning of the XIVth century, they are painted as charges upon shields, and still named as haches daneis, the Danish axes. The old Surrey family whose surname was Huskerley, bore three such axes in their shield, showing that two or three centuries after the last house-carles died with Harold and his brothers, there was a dim fancy that an axe of Danish fashion was the only symbol of one who took his name from some ancestral house-carle.
The bronze and iron helmets of the English thegns resembled those of the Norman invaders. No complete specimen is known to the writer; indeed, our national treasure house, the British Museum, fails us in even an incomplete example.

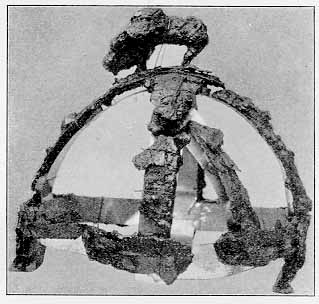

There was formerly, however, in the collection of Mr. Thomas Bateman of Derbyshire, the iron framework of a helmet of Anglo-Saxon times. This framework is now in the Public Museum, Sheffield (Fig. 11). It was found in the year 1848 in a low mound, surrounded by a slight rampart of earth, at Benty Grange, near Monyash, Derbyshire. The iron bands are surmounted by the figure of a boar standing upon a bronze plate. The bands are partly enriched with inlays of silver. It has been surmised, and probably correctly, that the lining of the helmet was of copper or even horn. There is a form of nasal guard attached.
 |
|
IXTH-XITH CENTURIES |
 |
|
Cott. MS. Claudius B. iv. British Museum The letterpress refers to the group of figures in the top left-hand corner of the Missal, but the representation of the shields, helmets, and weapons of the other combatants are all worthy of the closest scrutiny. |
In an illustration (Fig. 12) chosen from Cott. MS. Claudius B. iv, Ælfric's Paraphrase of the Pentateuch and Joshua, to which we have already referred, we see in the top left-hand corner the two kings helmetless but each wearing a crown. The first king is clothed in the loose Saxon gunna caught up at the waist, and with puckers, characteristic of Saxon fashion, in the sleeves. Apparently he is without thongs binding his legs. He is armed with a sword, long and double-edged, but is shieldless. The figure immediately to his left is his shield-bearer, although his charge is curiously held. The second king is habited in the ring-byrnie, with loose sleeves which reach to the elbow, and, as far as can be seen, open at the neck, descending to just above the knee, and with a short split at the front. Besides brandishing a sword of similar form to that of the first king, he holds out in front of him a round, convex shield with a spiked boss in the middle. The surface of this shield is plain, although that of his shield-bearer beside him, is represented as being constructed in segments.
The legs of the second king are apparently bare, but he has shoes or brogues of leather. The representation of the ringed mail is crude in the extreme, the links are the size of a crown piece, and would certainly appear to be sewn flat upon a foundation and not linked together.
But in spite of this, when we consider the conventional drawings of this period, with town walls like hen-coops, rocks and ploughed fields depicted as cloud-like forms, we can readily assume that a true interlinked chain-mail hauberk might be indicated in the inaccurate fashion of this illustration.
Part 2: Swords
